H96 max x3 s905x3 tv box

Ms.Lisa li

Product Details

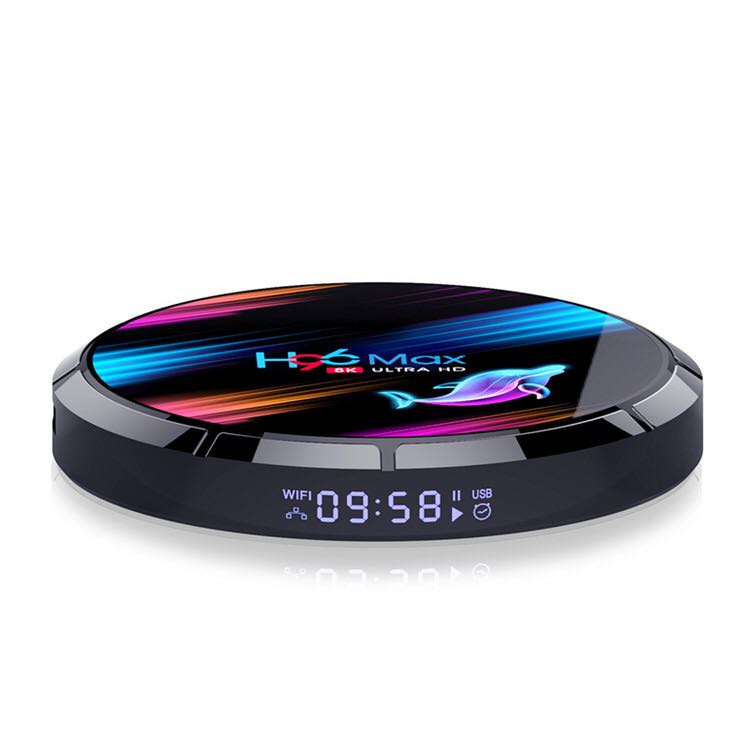

H96 MAX X3 / H96MAX X3

Operation System:: Android 9.0

Features:: HDR, H.265, 8K 24fps ,4K 60fps ,HD 2.1

Processor Core:: Quad Core

Processor:: Amlogic S905X3

Support Resolution:: 4k

Ethernet:: 1 x 10/100/1000MBps

WiFi:: 802.11n 2.4G/5GHz

CPU:: Amlogic S905X3 64-bit quad core ARM Cor tex A55 CPU

GPU:: G31 MP2 GPU processor

ROM:: eMMC:32GB/ 64GB/ 128GB

RAM:: DDR3: 4GB

HD OUT:: HD 2.1 ,Support HDMI CEC, Dynamic HDR , 8Kx4K@24 max resolution output

USB host:: USB2.0x1 USB3.0x1

Apps:: Apps download freely form android market,amazon app store etc.

4K:: HDR, H.265, 8K 24fps ,4K 60fps ,HD 2.1

2.4G/5G/BT:: IEEE 802.11 a/b/g/n/ac(2.4G/5GHz)+BT4.0

Ethernet Network:: Ethernet Interface;Support 10/100/1000M

Product introduction

H96 MAX X3(S905X3)
CPU	Amlogic S905X3 64bit quad core ARM® Cortex™ A55 CPU
GPU	G31™ MP2 GPU processor
Memory	DDR3: 4GB
Flash	eMMC:32GB(Option: 64GB/128GB )
WiFi	IEEE 802.11 a/b/g/n/ac ; 2.4G / 5G +1000M
BT	BT ; Support Voice Remote
Moudle	Plastic : Black Color

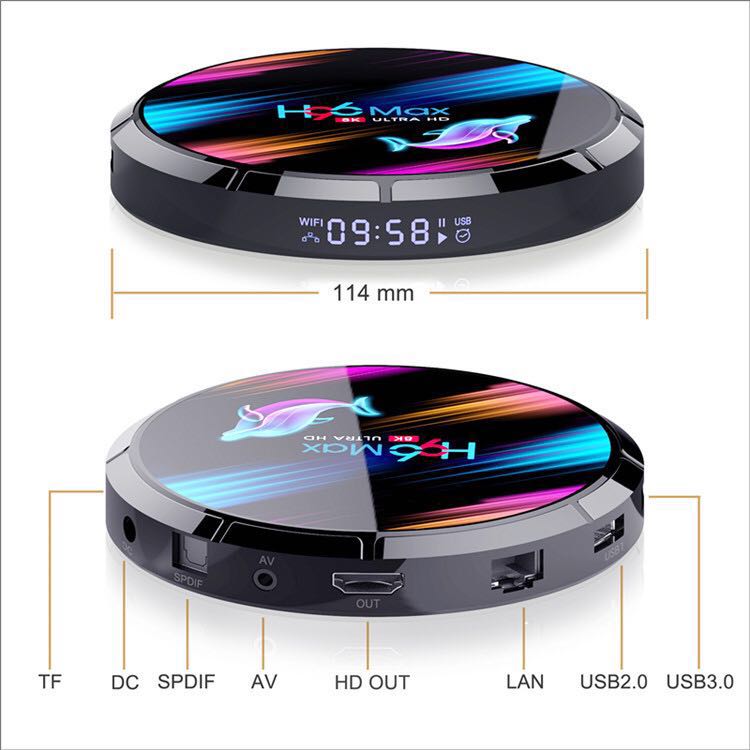

I/O	1*HD	HD 2.1 ,Support HD CEC, Dynamic HDR and and 8Kx4K@ 24 max resolution output
	1*AV OUT	480i/576i standard definition output
	3*USB	1 * USB 3.0 ; 1*USB 2.0
	1*IR Reciver	Remote Reciver Connect
	1*RJ45	Ethernet Interface;Support 10/100/1000M
	1*TF CARD	Support 4GB/8GB/16GB/32GB/64GB
Power	DC 5V/2A;
Software
OS	Android 9.0
Video	Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multivideo decoder up to 4x1080P@ 60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding VP9 Profile2 up to 8Kx4K@ 24 fps H.265 HEVC MP10@ L5.1 up to 8Kx4K@ 24 fps AVS2P2 Profile up to 8Kx4K@ 24 fps H.264 AVC HP@ L5.1 up to 4Kx2K@ 30fps MPEG4 ASP@ L5 up to 1080P@ 60fps (ISO14496) WMV/VC1 SP/MP/AP up to 1080P@ 60fps AVSP16(AVS+) /AVSP2 JiZhun Profile up to 1080P@ 60fps MPEG2 MP/HL up to 1080P@ 60fps (ISO13818) MPEG1 MP/HL up to 1080P@ 60fps (ISO11172) RealVideo 8/9/10 up to 1080P@ 60fps Multiple language and multiple format subtitle video support MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC10918) Supports JPEG thumbnail, scaling, rotation and transition effects Supports .mkv,.wmv,.mpg, .mpeg, .dat, .avi, .mov, .iso, .mp4, .rm and *.jpg file formats
Audio	Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 downmixing Lowpower VAD Builtin serial digital audio SPDIF/IEC958 input/output and PCM input/output 3 builtin TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs Builtin stereo audio DAC Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Image	HD JPEG,BMP,GIF,PNG,TIF
Language	English French German Spanish Italian etc multilateral languages
Appliactions
Online	Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps	Apps download freely form android market,amazon app store etc.
Medium	Local Media playback,Support HDD, U Disck ,TF Card .
Talk online	Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc
Others	Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard
Product dimension	10510520(MM)
Accessories :
1,HD cable *1
2,IR Remote *1
3,User Manual *1
4,Package box *1
5,Power adapter *1
